Car Digital Android Settop Box 'A-LINK'

-



▲  A-LINK Octa core Digital Android settop(GPS) For Mercedes 2015 S-Class W222

-------




Mercedes Benz New S-Class W222 In The INDIWORK Garage.




Installed the A-LINK solution

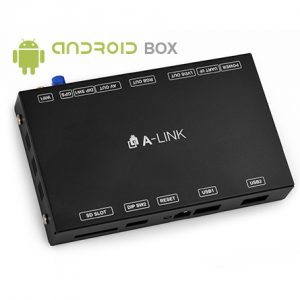

* Car Digital Android Settop Box 'A-LINK' *

( * FAKRA GPS cable provides high GPS reception sensitivity)
( * Smart Drive -
Track change using the vehicle's genuine jog dial,
And, APP shortcut functions.

------------------------------------




  • Settop box type DIGITAL ANDROID.
  • Optimized for each vehicle and fully interoperable.
  • Android 5.1.1 (Lollipop) NXP5430Q-64bit Cortex-A53 Octa Core@1.6Ghz Mali-400 MP4 GPU.
  • Provide the high quality 4CH digital LVDS output.
  • The digital signal is directly connected to the OEM monitor, realizing the super high definition image quality.
  • Compatible with Digital Interface and Analog RGB interface.
  • Provides unique Smart Drive system optimized for each vehicle.
  • Convenient system operated by genuine button or controller. (Quick Start App. Seek, Zoom IN / OUT)
  • Implementation of automatic emergency lighting system using CAN value of vehicle.
  • FAKRA IN/OUT cable available.(Using the Genuine GPS, DMB ports.) * Amazing reception sensitivity.*
-----------------------------------------------------------------------------


  • OS : Android 5.1.1 (Lollipop)
  • CPU : NXP5430Q-64bit Cortex-A53 Octa Core@1.6Ghz Mali-400 MP4 GPU
  • Internal Memory : 2GB DDR3 @800Mhz
  • NAND : 16GB eMMC
  • USB : USB2.0 High Speed Port x 2
  • Signal : 802.11 b/g/n WiFi, Bluetooth 4.0
  • GPS : Ublox7
  • Touch : Resistor and Capacitive touch support
  • RGB OUT : 800×480 or 480×234, Including RGB scaling function
  • LVDS OUT  : Digital 800×480 LVDS OUT
  • Speaker : 2W
  • FM Transmitter : 88.0Mhz~108.0Mhz
  • I/O : AV IN(Only Video), Stereo Audio Out, UART(Only Smart Drive)
  • Voltage : DC 12V ~ 24V
  • Temperature : Storage -20 C ~ +80 C/ Operating -15 C ~ +70 C
  • Size : 142mm(W) x 91mm(H) x 22mm(D)
